HORIZONTAL
ASSEMBLY PRESS

A benchtop horizontal press designed for accurate, repeatable assembly of long or difficult to orient parts.
  • Ideal for long or difficult to orient parts
  • Configurable length and tooling for your appliaction
  • Repeatable, guided press-fit performance
REQUEST A QUOTE

WHEN VERTICAL PRESSING
DOESN'T WORK

Long parts, awkward assemblies, and ergonomic issues can slow down production and lead to poor quality.  Traditional vertical presses often aren’t the right fit for long parts.
  • Parts too long or unstable for vertical presses
  • Difficulty maintaining alignment during pressing
  • Ergonomic issues and awkward part handling

A HORIZONTAL APPROACH
TO PRESS-FIT ASSEMBLY

Our horizontal assembly press is designed to improve alignment, control and ease of use when working with long or difficult parts.

IMPROVE
ALIGNMENT

SAVE TIME &
INCREASE OUTPUT

INCREASE
CONSISTENCY

Common applications: End cap installation, bearing press fits, shaft assemblies, long component assembly.

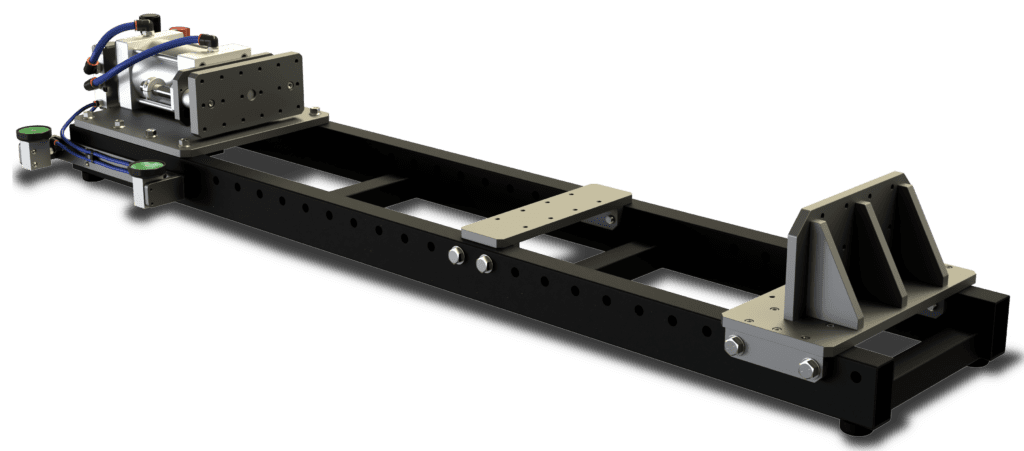

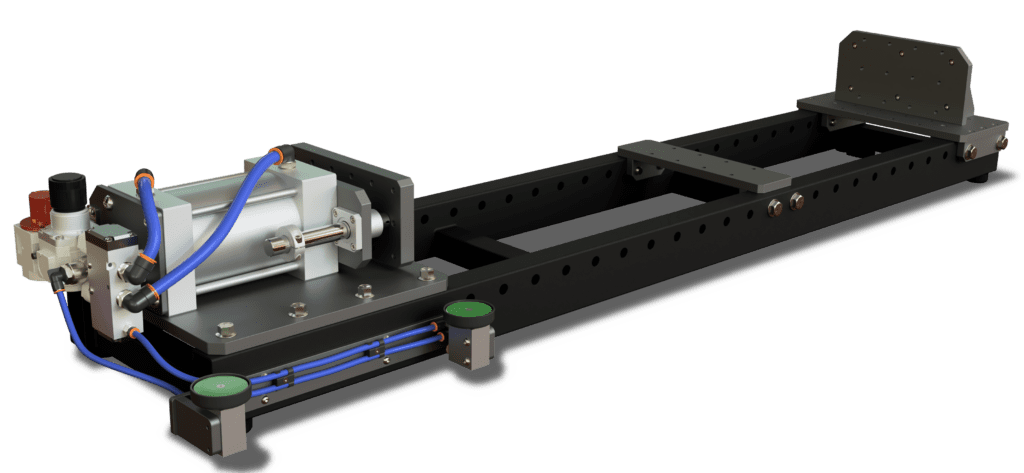

STANDARD HORIZONTAL ASSEMBLY PRESS

A configurable press system designed for a wide range of assembly and press fit applications.

CONFIGURATIONS & OPTIONS

  • Pneumatic (standard) or hydraulic actuation
  • Customizable length to fit your application
  • Multiple stroke lengths with adjustable stroke limiter
  • Range of force outputs depending on configuration
  • Optional mid-support fixture assemblies

In-house design & build services are also available for custom fixturing to locate and secure your parts on our standard press system.

Show us your application, and we’ll design the tooling to match.

SPECIFICATIONS
Actuation Options
Pneumatic or Hydraulic
Force Range
Pneumatic: 200 – 2800 lbf.

Hydraulic: 1-5 ton
Standard Lengths
24″, 48″, 72″ (Custom Lengths Available)
Tooling Interface
Press Plate & End Plate with Tapped Hole Grid
Safety Features
Two-Hand Anti Tie Down Palm Buttons
Mounting
Benchtop (Optional Stand Available)
Frame Construction
Powder Coated Steel
Country of Origin
Designed & Built in the USA

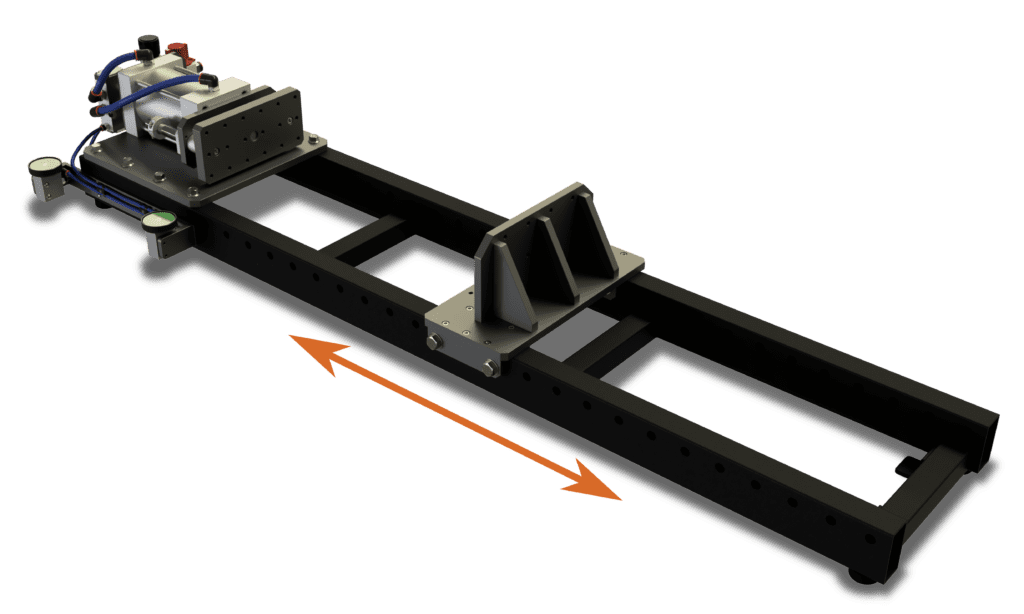

Adjustable position end stop assembly
Provides a rigid & repeatable backstop for workpieces of varying lengths.

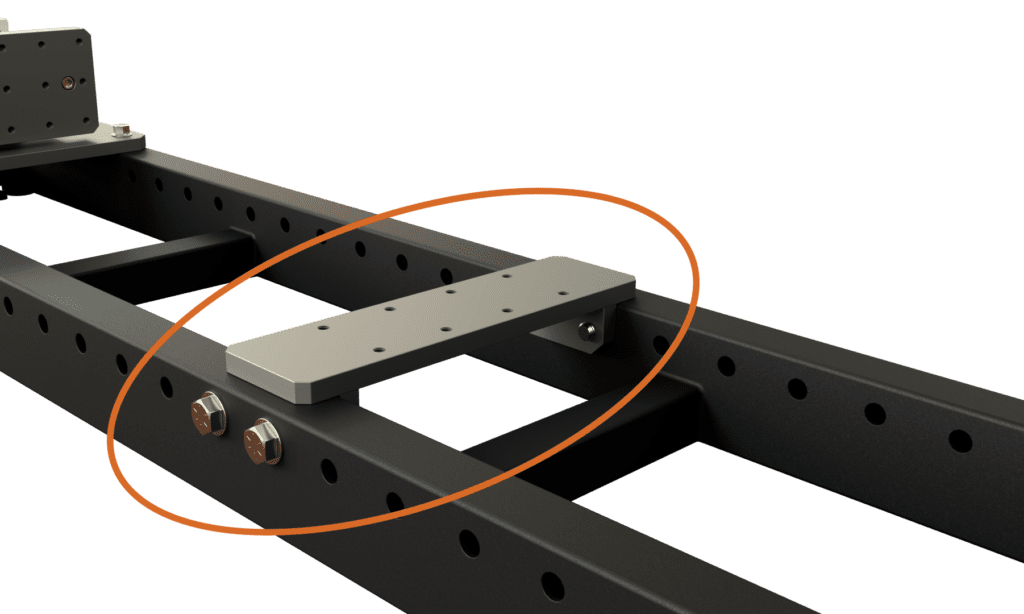

Optional mid-support fixture assembly
Additional supports can be added to support workpieces or alignment fixturing.

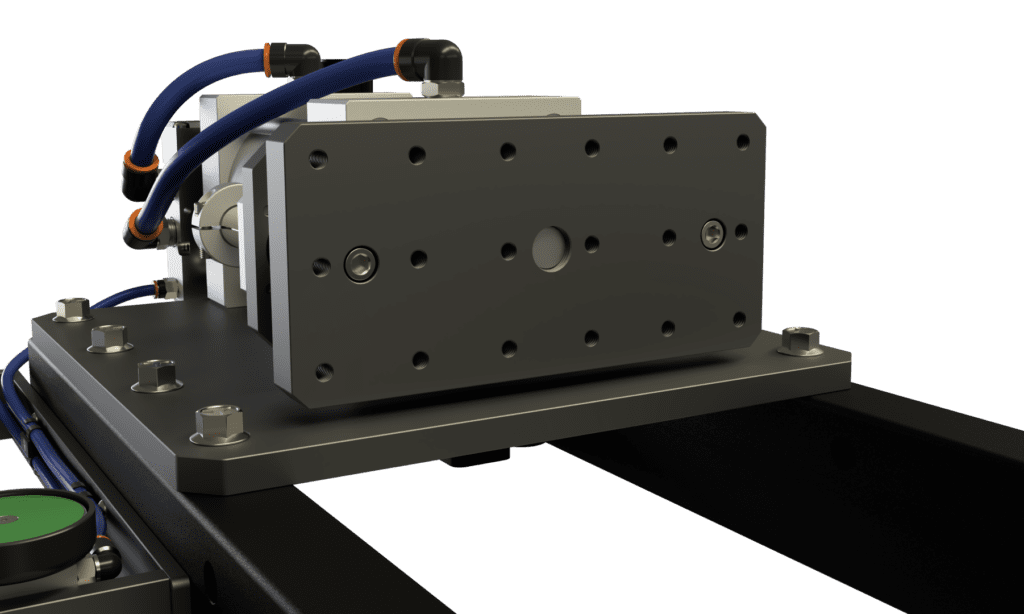

Press plate with tapped fixture holes
Precision machined hole pattern for mounting custom tooling & fixtures.

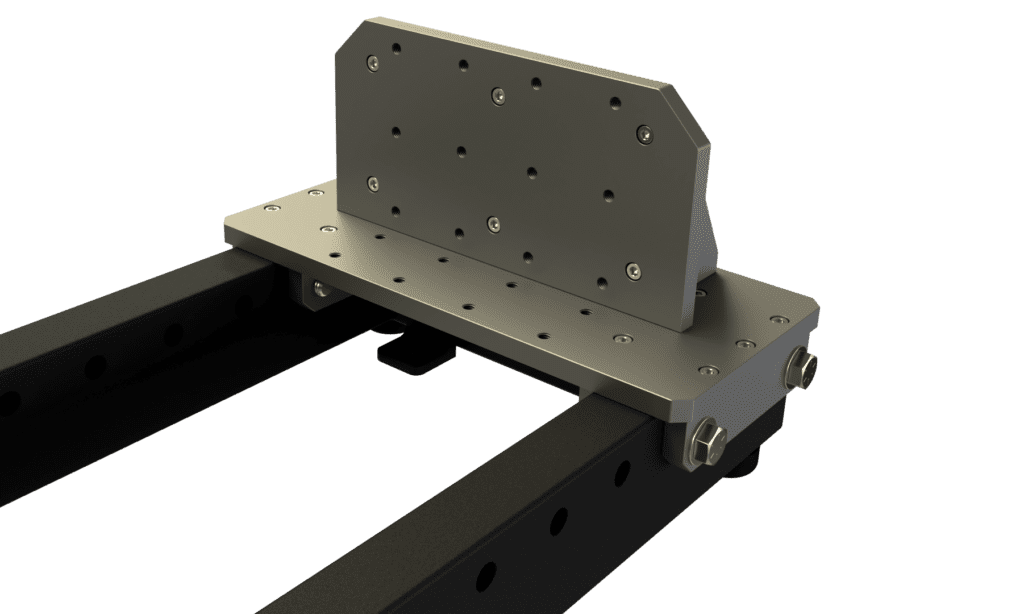

End stop with tapped fixture holes
Includes a grid of tapped holes on the horizontal and vertical surfaces.

HAVE AN ASSEMBLY CHALLENGE?

Get in touch to share some details about your application.

We are ready to collaborate with you to create a horizontal press solution that meets your exact needs.

Most presses start in the $5,000 – $8,000 range depending on configuration, optional accessories or other requirements.


NEED SOMETHING MORE SPECIFIC?

WE ALSO DESIGN AND BUILD FULLY CUSTOM PRESS SOLUTIONS.

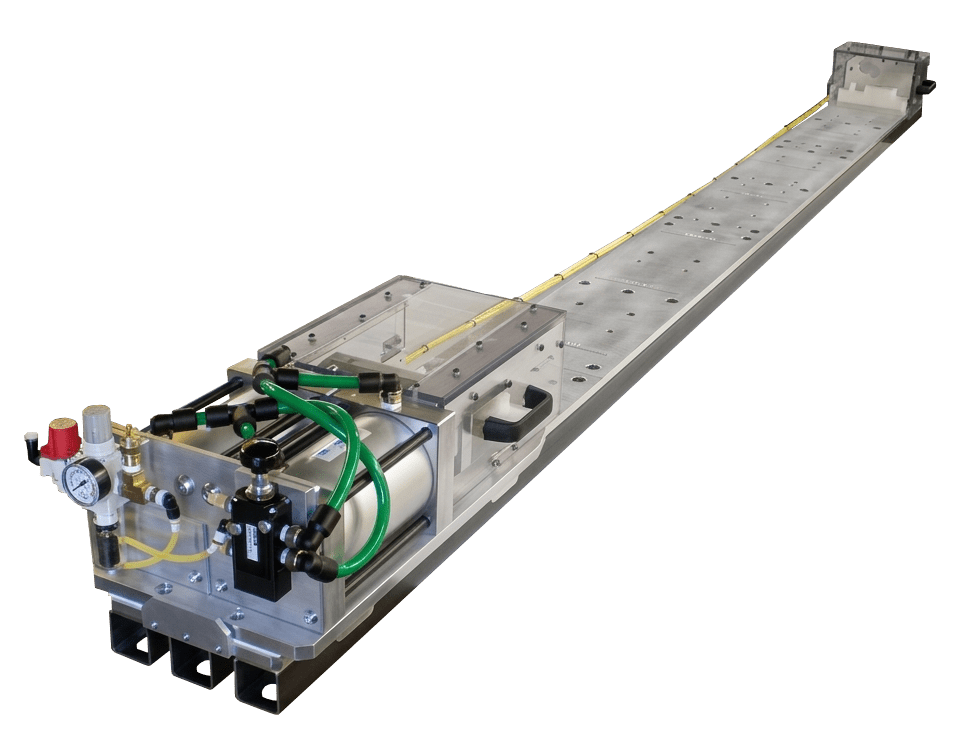

In addition to our standard horizontal assembly press, we design and build custom press systems tailored to specific parts, processes and production requirements.

  • Application-specific fixturing and tooling
  • Higher force requirements
  • Custom sizes, layouts and auxiliary equipment integration
  • Mobile / Portable press solutions
  • Real-time force meters and other sensors

Fill out the form above to start a conversation about your custom press design.
